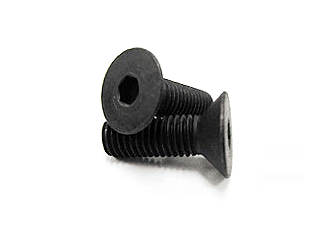

SCM접시머리렌지볼트 |
| 볼트 |
|
|
| |
|
| |
 |

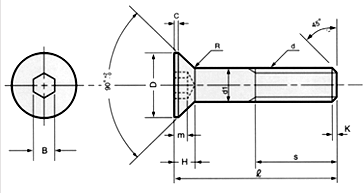

특성표 |
Unit : mm |
|
Nom
Size
d |
d1 |
D |
H |
B |
m |
R |
K |
C |
S |
| 최대 |
최소 |
최대 |
최소 |
최대 |
최대 |
최소 |
최대 |
최소 |
approx |
최대 |
approx |
min
Thread
Length |
| M3 |
3.0 |
2.86 |
6.0 |
5.7 |
1.7 |
2.046 |
2.006 |
1.2 |
0.95 |
0.1 |
0.8 |
0.25 |
12 |
| 4 |
4.0 |
3.82 |
8.0 |
7.6 |
2.3 |
2.566 |
2.506 |
1.8 |
1.55 |
0.2 |
1.0 |
0.3 |
14 |
| 5 |
5.0 |
4.82 |
10.0 |
9.6 |
2.8 |
3.066 |
3.006 |
2.3 |
2.05 |
0.2 |
1.2 |
0.3 |
16 |
| 6 |
6.0 |
5.82 |
12.0 |
11.6 |
3.3 |
4.085 |
4.010 |
2.5 |
2.25 |
0.3 |
1.5 |
0.4 |
18 |
| 8 |
8.0 |
7.78 |
16.0 |
15.6 |
4.4 |
5.085 |
5.010 |
3.5 |
3.2 |
0.5 |
1.8 |
0.4 |
22 |
| 10 |
10.0 |
9.78 |
20.0 |
19.5 |
5.5 |
6.085 |
6.010 |
4.4 |
4.1 |
0.5 |
2.2 |
0.5 |
26 |
| 12 |
12.0 |
11.73 |
24.0 |
23.5 |
6.5 |
8.103 |
8.013 |
4.6 |
4.3 |
1 |
2.5 |
0.5 |
30 |
| 16 |
16.0 |
15.73 |
30.0 |
29.5 |
7.5 |
10.103 |
10.013 |
5.3 |
5.0 |
1 |
3.0 |
0.5 |
38 |
|
|
Nom
Size
d |
ℓ |
Tensile Load
(kgf) [N]
|
| Fully threaded |
Half threaded |
| M3 |
|
8 |
10 |
12 |
14 |
15 |
16 |
18 |
20 |
25 |
30 |
35 |
40 |
|
|
530 [5,200] |
| 4 |
8 |
10 |
12 |
14 |
15 |
16 |
18 |
20 |
25 |
30 |
35 |
40 |
|
|
|
930 [9,100] |
| 5 |
10 |
12 |
14 |
15 |
16 |
18 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
1,500 [14,710] |
| 6 |
12 |
14 |
15 |
16 |
18 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
60 |
|
|
2,130 [20,890] |
| 8 |
14 |
15 |
16 |
18 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
60 |
70 |
80 |
|
3,880 [38,050] |
| 10 |
|
16 |
18 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
60 |
70 |
80 |
90 |
100 |
6,150 [60,310] |
| 12 |
|
|
20 |
25 |
30 |
35 |
40 |
45 |
50 |
60 |
70 |
80 |
90 |
100 |
|
8,900 [87,280] |
| 16 |
|
|
|
30 |
35 |
40 |
45 |
50 |
60 |
70 |
80 |
90 |
100 |
|
|
16,600 [162,800] |
|
| |
|
Tolerance on ℓ |
Unit : mm |
|
Division of
S |
Tolerance |
| 18 |
+2
0 |
| 18 ~ 30 |
+3
0 |
| 30 |
+4
0 |
|
| |
|
Tolerance on s |
Unit : mm |
|
Division of
ℓ |
M3 ~ M10 |
M12 ~ M16 |
| 50 |
± 0.4 |
± 0.5 |
| 50 ~ 120 |
± 0.5 |
± 0.6 |
| 120 ~ 250 |
± 0.6 |
±
0.7 |
|
|
