셋트앙카 |
| 앙카 |
|
|
| |
|
| |
 |
Material SS41, SUS 304 |
Unit : mm |
|
| Bolt
Size |
Plate
Size |
Tensil
strength |
Suitable
drill |

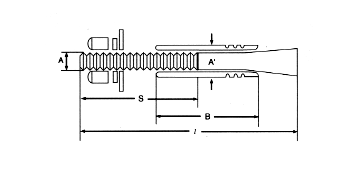

| Bolt
Size (A) |
Total
length (l) |
Screw
length(S) |
Drgee
(A") |
Pipe
length (B) |
| M6
(W1/4) |
50 |
25 |
10.0 |
30 |
740 Kgf |
11.0 |
| M8
(W5/16) |
60 |
30 |
12.0 |
35 |
2,120 |
12.5 |
| M10
(W3/8) |
75 |
45 |
14.0 |
40 |
2,930 |
14.5 |
| 100 |
70 |
| 125 |
85 |
| 150 |
100 |
| 200 |
150 |
| 250 |
180 |
| 300 |
230 |
| M12
(W1/2) |
100 |
60 |
17.0 |
50 |
4,710 |
18.0 |
| 125 |
75 |
| 150 |
100 |
| 200 |
150 |
| 250 |
180 |
| 300 |
230 |
| M16
(W5/8) |
100 |
50 |
|
|
4,740 |
22.0 |
| 125 |
70 |
21.0 |
65 |
5,200 |
| 150 |
90 |
| 200 |
140 |
| 250 |
180 |
| 300 |
230 |
|
|
7,690 |
| M20
(W3/4) |
150 |
80 |
|
|
6,500 |
26.5 |
| 200 |
130 |
25.0 |
75 |
16,880 |
| 250 |
180 |
| 300 |
230 |
| M22
(W7/8) |
200 |
130 |
28.0 |
95 |
19,750 |
29.0 |
| 250 |
180 |
| 300 |
230 |
| M24
(W1") |
200 |
130 |
32.0 |
110 |
27,600 |
33.0 |
| 250 |
180 |
| 300 |
230 |
|
|
